How to Redact and Sanitize a PDF: Limits to Know

Redaction and Sanitize Document work on different parts of a PDF, and neither is a universal scrubber. Redaction rewrites the searchable text operators that intersect a marked region. When there is no supported text to remove, PolyPDF still draws the black fill and completes the operation, so vector outlines, text converted to paths, and other graphics can remain in the file underneath it.

If PolyPDF reports that no text was removed, nothing was redacted — however black the page looks. Stop there and move that material to an approved content-removing workflow.

PolyPDF declines pages it cannot rewrite safely — a page that draws its text through a reusable Form XObject, for example. A refusal is not a failure to work around; it means that page needs a different tool.

1. Duplicate the source PDF and keep the original where the working process cannot overwrite it.

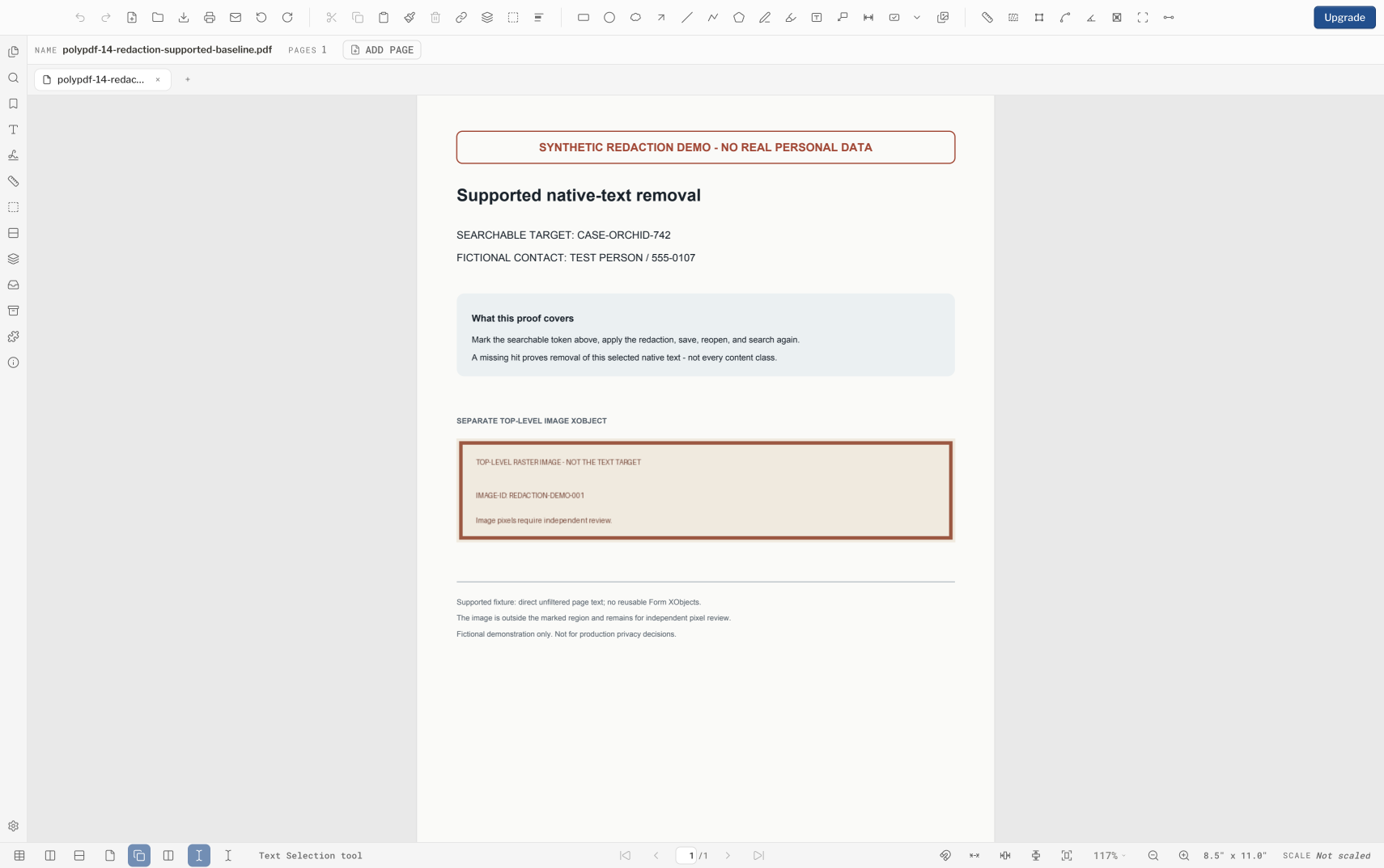

2. Confirm the target is ordinary searchable text by finding and selecting it. If it is a scan, an image, an outline, or a vector path, this workflow will not remove it.

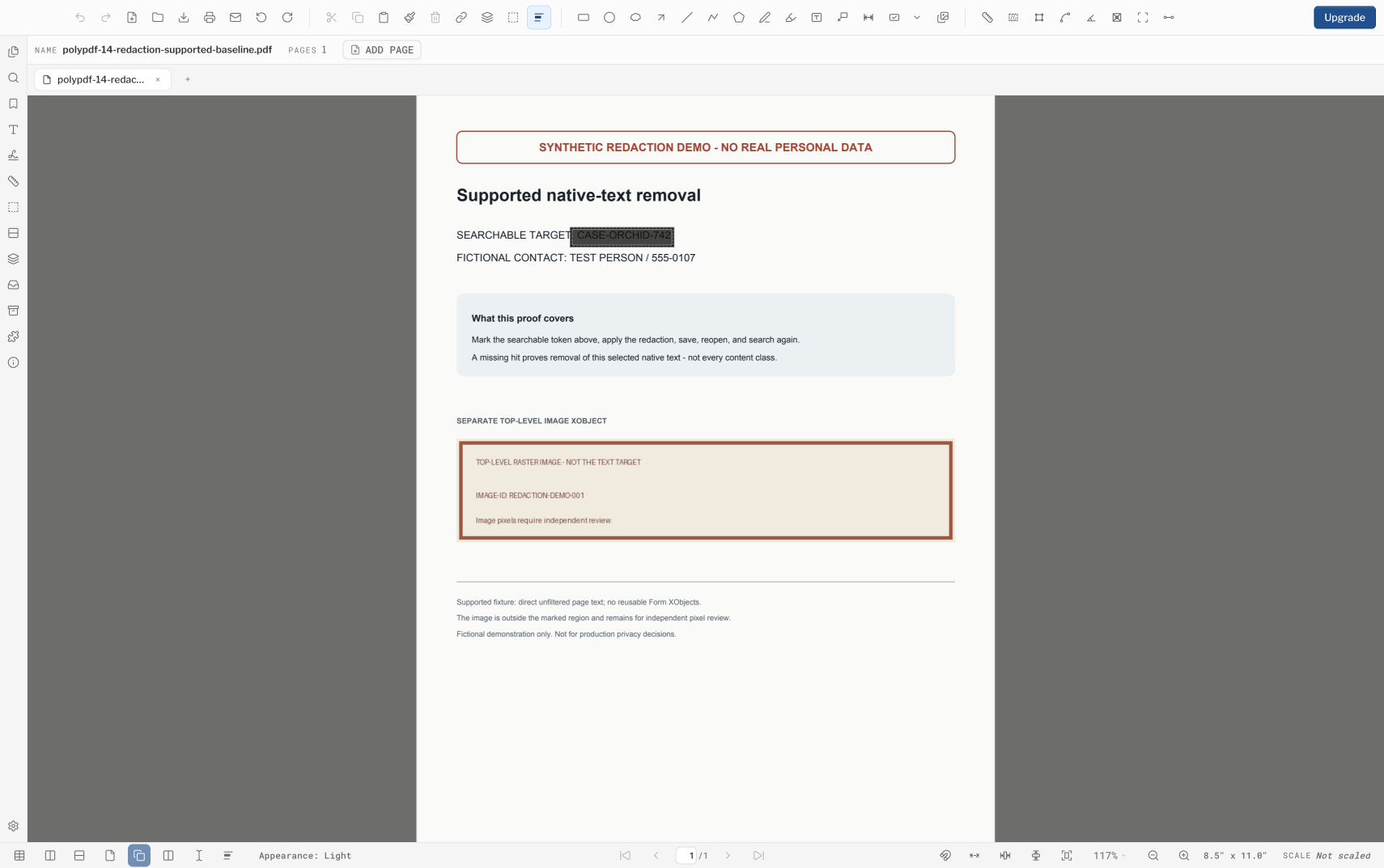

3. Choose the Redact tool and draw a tight region around each supported text item. Review repeated names, headers, footers, and similar pages before applying anything.

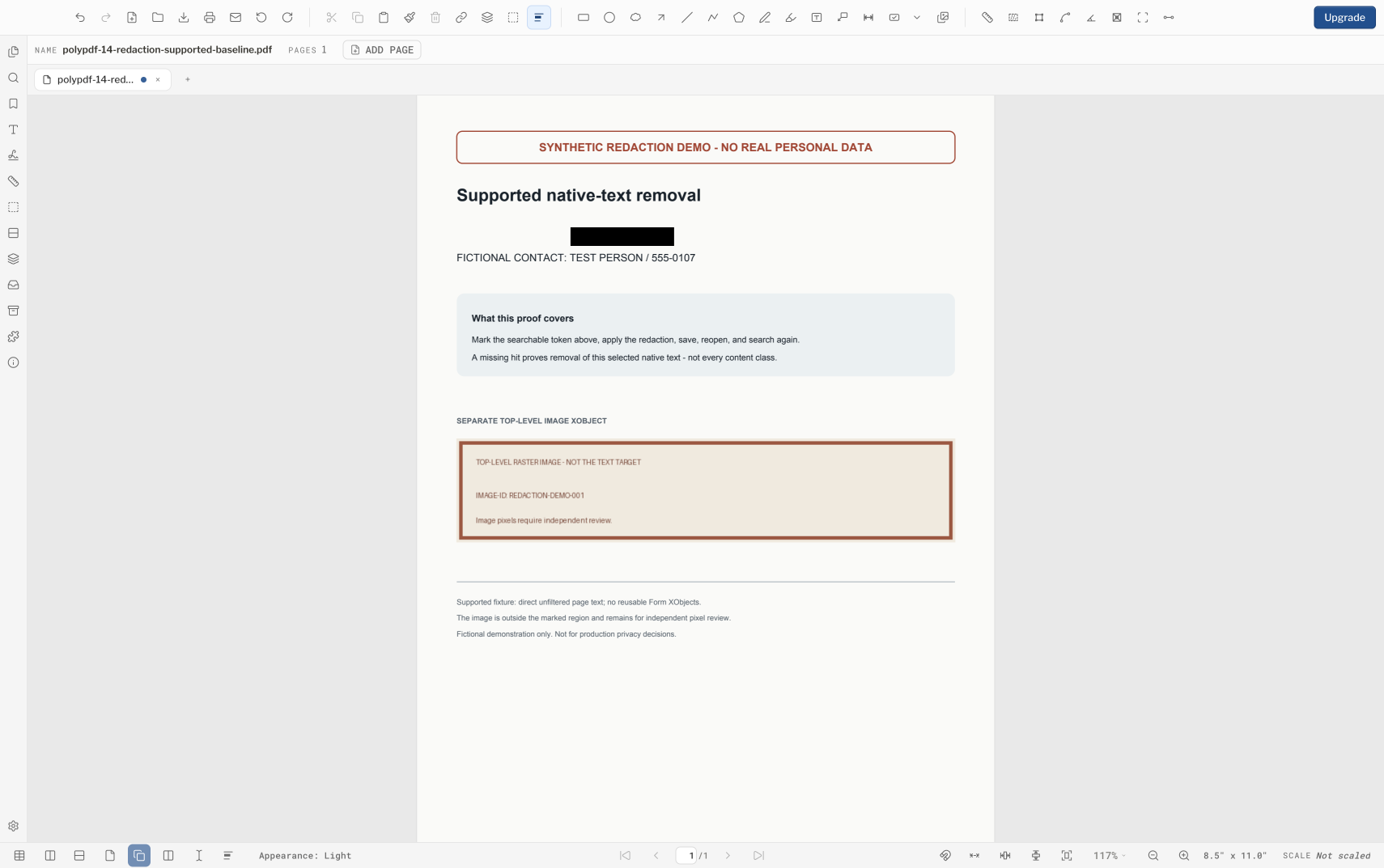

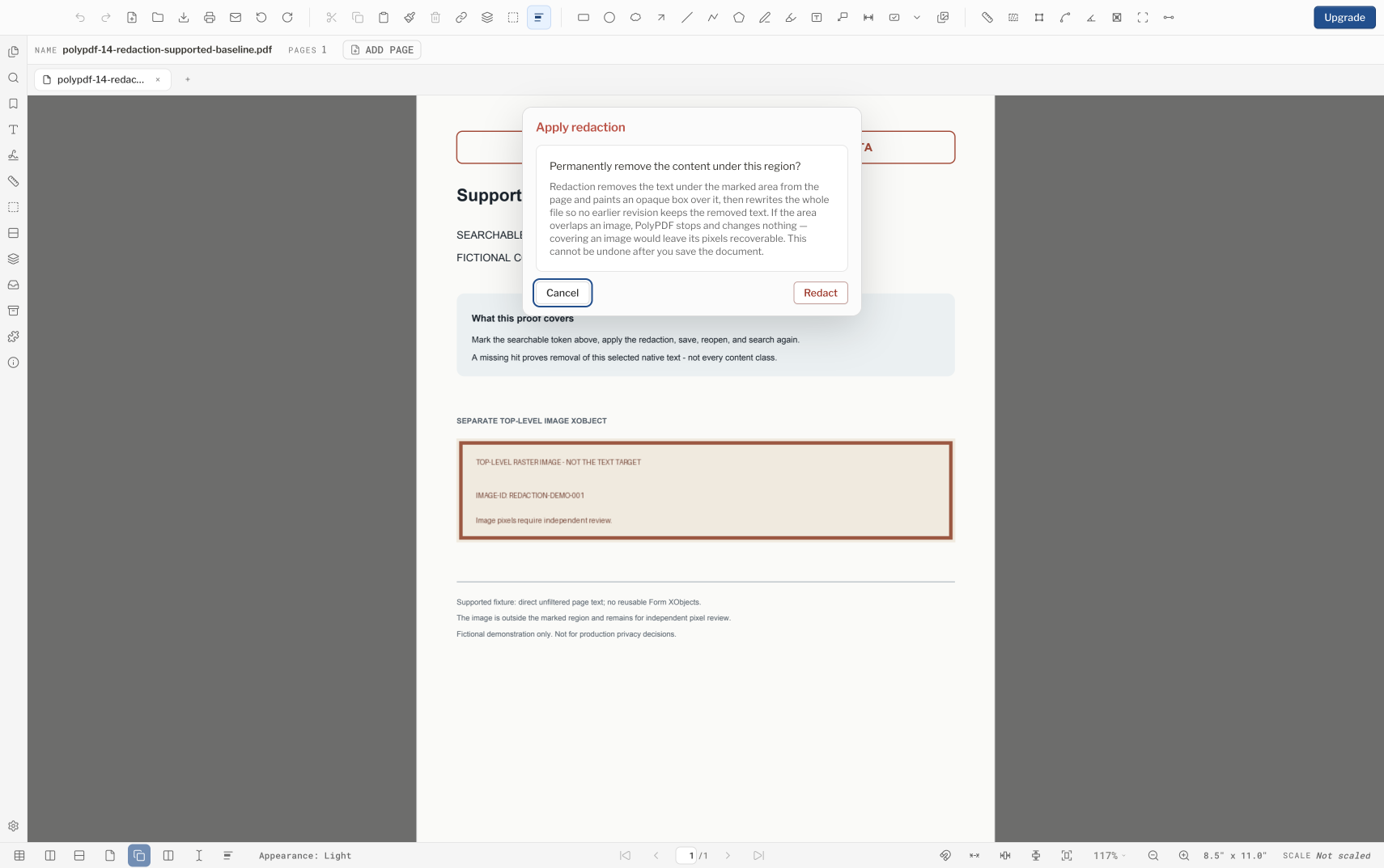

4. Apply the redactions and read the result. A refusal, an error, or a “no text removed” outcome means nothing came out of the file — do not rely on the black appearance.
5. Save under a new candidate filename, close it, and reopen that exact saved file.
6. Search and extract text from the whole saved file. Try selecting and copying across the former region and inspect it in a second recipient-style viewer.
7. For confidential, regulated, privileged, or legally sensitive content, follow the organization’s approved redaction and inspection process even when these checks pass.

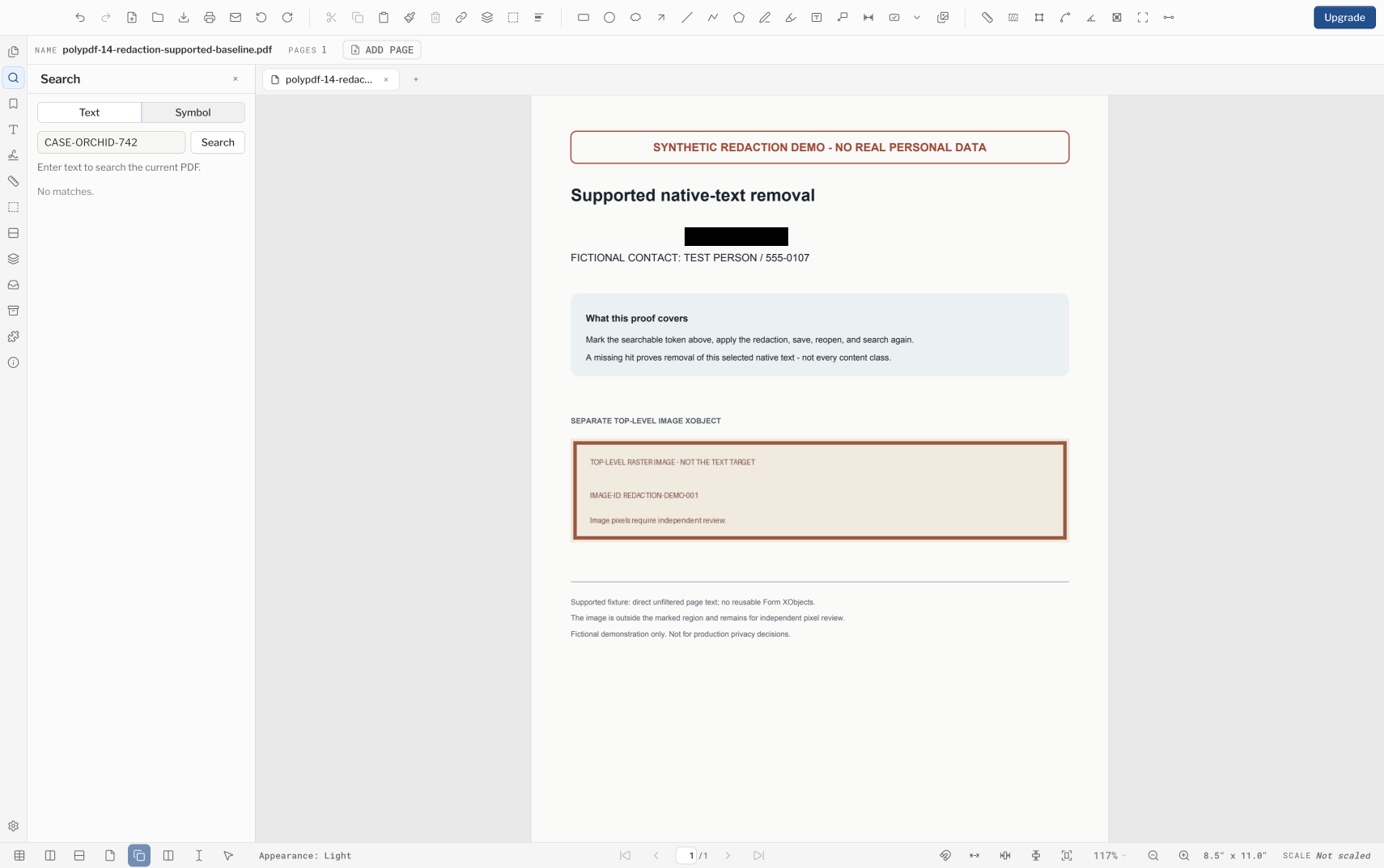

For a token like this one, the saved file comes back empty under all three checks a reviewer can run: in-app Search, text extraction, and a byte search of the uncompressed file. Those checks cover text and nothing else. A single sheet can mix text operators, raster pixels, vector lettering, clipping paths, and reusable form content, and the image on this page was left exactly as it was.

PolyPDF detects top-level image placements before applying a redaction, but that check does not recurse through every nested Form XObject, so an image embedded inside reusable form content can slip past it. Text converted to outlines is vector artwork rather than a text-show operation, and it can likewise remain beneath the fill.

• Do not infer content type from appearance. Being able to search for a string tells you that it is text; it tells you nothing about the rest of the page.
• Do not flatten, rasterize, print, or cover a page and assume that step alone meets a security or records requirement.
• For a scanned page or image-based identifier, use an approved image-aware redaction tool and verify the resulting pixels and PDF structure.
• For outlined or vector lettering, require a process that removes or replaces the underlying drawing commands rather than adding an opaque shape.
• If you cannot independently inspect the final file, do not release sensitive material based on the PolyPDF result alone.

A second viewer is useful for visual interoperability, but it is not a forensic inspection tool. Confidential release may require text extraction, object inspection, and an approved review record.

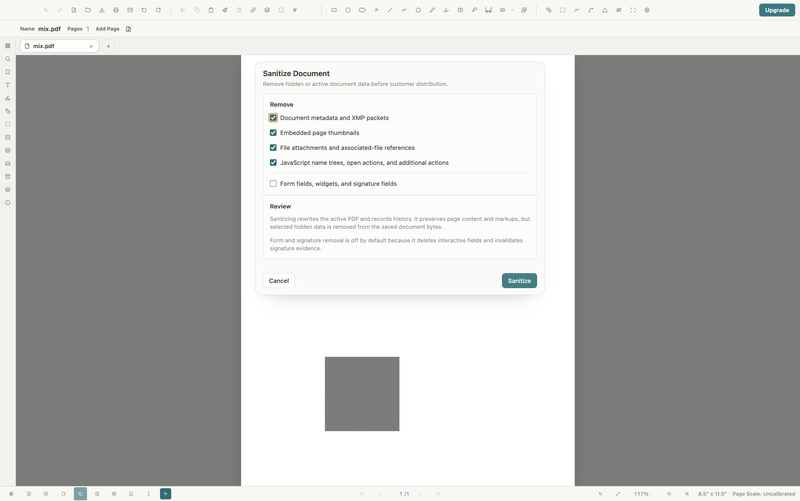

Sanitize Document offers separate choices for document metadata and XMP packets, page thumbnails, attachments, JavaScript and actions, and optional form or signature-field removal. Those labels describe what the pass targets; they are not a guarantee that every location in the PDF object graph is visited.

• Existing document metadata is cleared, but saving writes new PolyPDF /Producer and /ModDate entries. The result is never a metadata-free file.
• The catalog JavaScript name tree is removed. Actions reached through annotations, form fields, outlines, or nested chains are not guaranteed to go with it.
• Attachment cleanup is not exhaustive. With attachment cleanup selected, a direct FileAttachment annotation and its embedded payload survived the pass byte for byte.
• Page text and images stay exactly where they are, top-level images and images nested in a Form XObject alike. Sanitize Document is not a redaction step.
• Form and signature-field removal is destructive and off by default. Turn it on only when you intend to lose those fields.
• Keep the untouched source and save each candidate output under a distinct name so a partial cleanup does not replace the record copy.

The result message counts what the pass removed, not what remains. Base a release decision on the saved file you inspected, not on the dialog labels or the completion message.

Close and reopen the exact candidate file so every check is based on saved bytes rather than the in-memory view. A complete review follows the information through more than one surface: rendered pages, searchable text, document properties, embedded-file structures, annotations, form fields, bookmarks, links, and actions.

• Search for the full sensitive values and useful fragments, then run independent text extraction against every page.
• Inspect at high zoom and in a second PDF viewer, including print or export output when recipients use those paths.
• Use an approved structural inspection tool to inventory embedded files and inspect annotation, form, outline, and additional-action entries.
• Confirm page count, bookmarks, links, forms, signatures, layers, and print appearance still match the release requirements.
• Record the input filename or hash, output filename, reviewer, date, tool versions, and checks performed when the process requires an audit trail.

Before you touch a real file, build a throwaway PDF that resembles it: one identifier as ordinary searchable text, a raster image, and — if the real drawing has them — text drawn through a reusable Form XObject. Redact the identifier and watch which parts PolyPDF handles and which it declines. A page whose text comes from a Form XObject is declined outright rather than half-redacted, which is the behavior you want to see before a deadline rather than during one.

Apply the region, save under a new name, close the file, and reopen that exact file. Search for the identifier, extract the text of every page, and confirm the count comes back zero. Where it does not — or where the sensitive content was an image, an outline, or a vector path — that content needs a different tool.

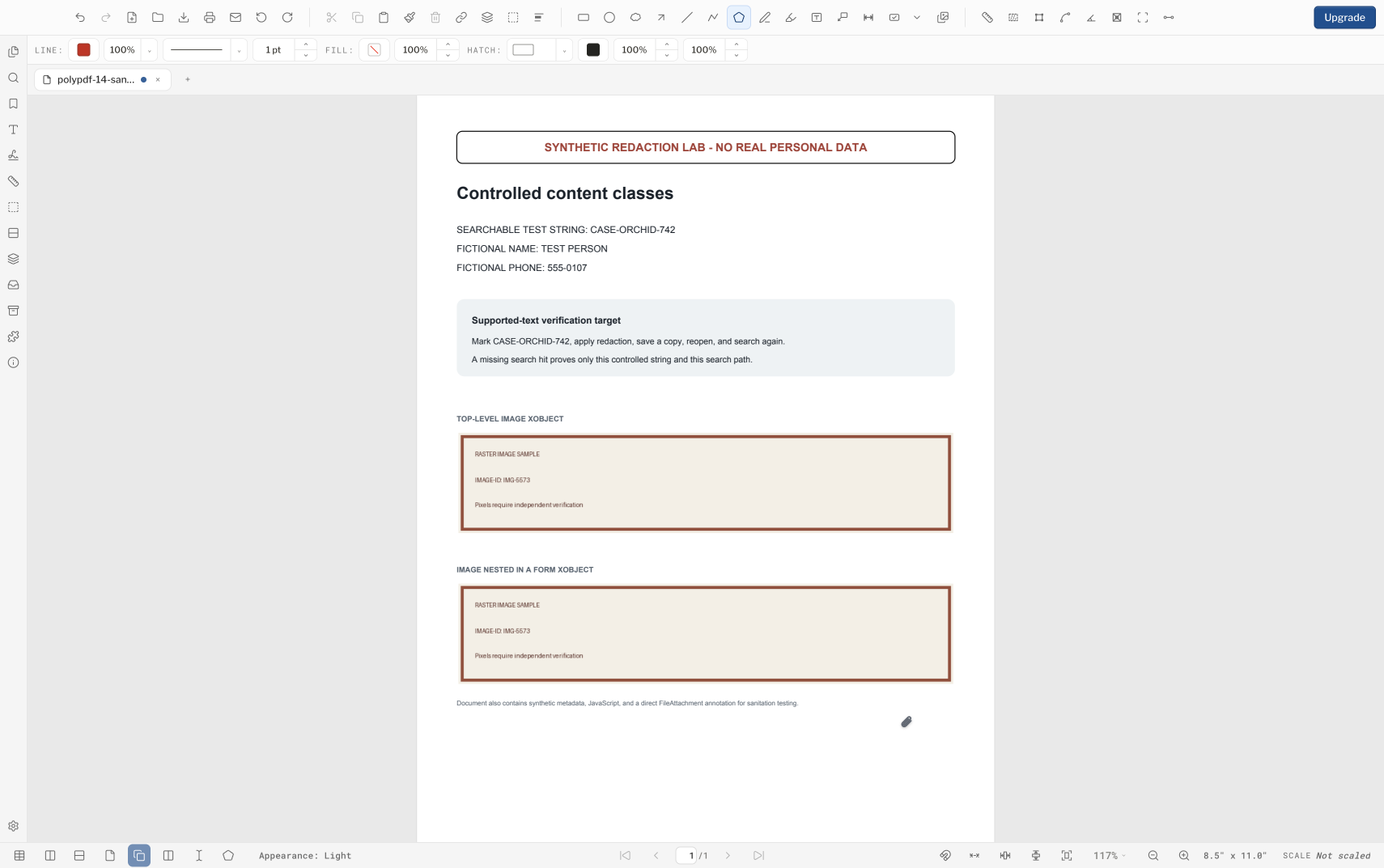

Rehearse sanitation the same way. Start from a copy that carries document metadata, a JavaScript entry, an attachment, and images; run Sanitize Document; then inspect the saved file. Expect the JavaScript entry and the original metadata to be gone, fresh Producer and ModDate metadata written on save, and the attachment and both images still present.

A rehearsal tells you how PolyPDF behaves on your kind of drawing. It is not a reason to make PolyPDF the only redaction or sanitation control for sensitive documents.
